1 Kanal House Design 2026 — Floors, Lawn, Basement & Rooftop Ideas

1 Kanal house design provides the blueprints, floor plans, elevations, and construction design of the 4,500 sqft house plot. It is the largest and most preferred plot size in Pakistan.

Elegant Design & Construction has developed many 1 Kanal house projects for families in DHA Phase II, Bahria Town, Gulberg Greens, B-17, and Bani Gala, with the most important aspect being the plot orientation, climate-responsive design, and functionality.

Let us illustrate 3D floor plans, front elevations, basements, and rooftop construction designs that provide an in-depth guide for each property owner in Rawalpindi and Islamabad when building a 1 Kanal house.

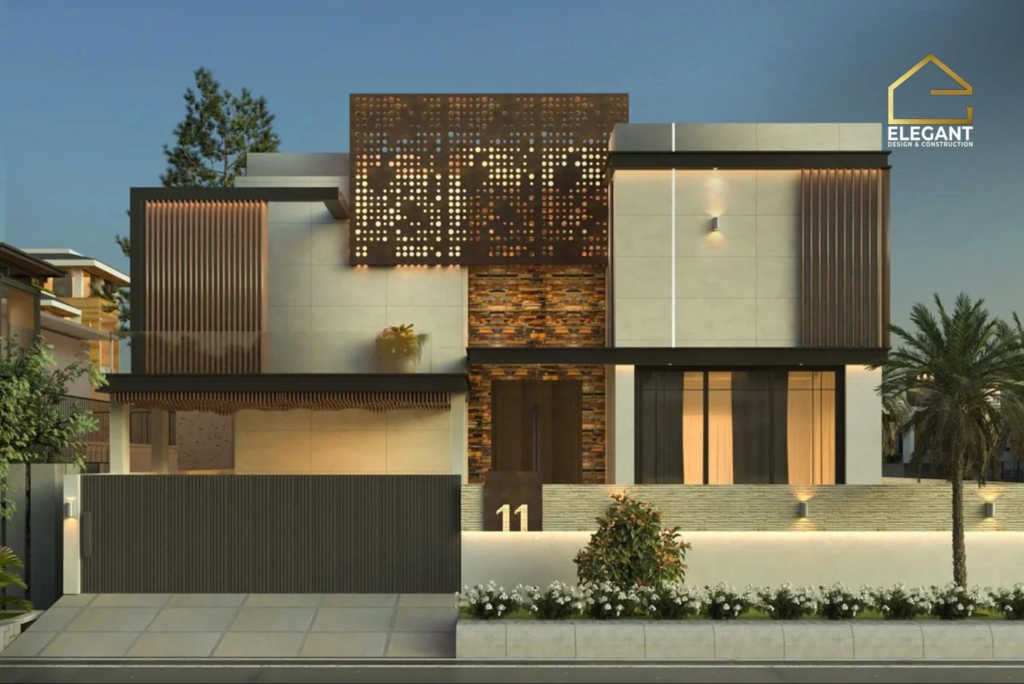

1 Kanal house in DHA, Phase 2, Islamabad by Elegant Design & Construction

What sets a 1 Kanal house apart from other small plots of land:

• Plenty of floor space for 3-5 bedrooms
• Room for both formal and casual entertaining zones
• Presence of an outside lawn
• The basement may be used for fitness, entertainment, or storage purposes
• Roof spaces used simply for utility purposes or for entertaining purposes
• The possibility of constructing servant quarters

What is a 1 Kanal Equivalent in Real Dimensions?

Kanal is the unit of land measurement derived from the Mughal era. This is considered to be the standard unit in Pakistan for most major housing schemes like Bahria Town, DHA, Islamabad, Lahore, and Rawalpindi.

1 Kanal = 4,500 sq ft approximately

The 50 ft × 90 ft dimension is increasingly common, as almost all new estates now have 50ft fronts. A 50 ft front ensures a broad elevation, a double-car porch, and a front lawn. Generally, according to CDA, RDA, & DHA, a 10 ft front setback, 5 ft setback at the back, and 5 ft on both sides – giving about 40 ft, 75 ft effective coverage area on each floor.

Key Zoning Rules 2026

Some important zoning regulations that every owner needs to ensure before starting the design:

• Maximum Ground coverage: 65-70 % of the plot area.
• Maximum Height: 38 ft of 2 floors + mumty
• Basement: Allowed up to ground coverage
• Servant quarters: Allowed on the rear and a separate entrance from outside.
• Boundary wall max height: 7ft (front) and 8 ft (sides and back)

Plot Layout Strategy Based On Orientation

The orientation of your 1 kanal plot will decide the building positioning and how you arrange your outdoor areas.

South Facing Plot

The main issue with south-facing plots is that they receive a lot of direct sunlight, especially in the afternoon on the southern facade of the house.

• Master Bedroom/Kids Room on North Side (Less sunlight, Quieter)
• Living Areas on the East Side (morning sunlight, less of it in the afternoon)
• Lawn on the South side (serves the purposes of both utilities and recreational space)
• Servant Quarters on West Side/North West Corner

North-Facing Plot

These plots usually get ample natural daylight without much of the afternoon heat. All bedrooms can be well-lit. Living rooms can face any direction. Better cooling efficiency, and it is good for downstairs living spaces.

Corner Plot (More Valuable, Innovative Layouts)

A corner plot offers advantages because there are two sides of the plot that have road access. This allows you to develop the plot more innovatively with space between the garage, parking spaces, main entrance, and guest entrance. It is also easier to arrange lawn spaces, making them visible from both roads. There are better lighting options as well.

1 Kanal House Front Elevation Designs 2026

The front elevation is the first impression of a house, which represents the architectural style of the house.

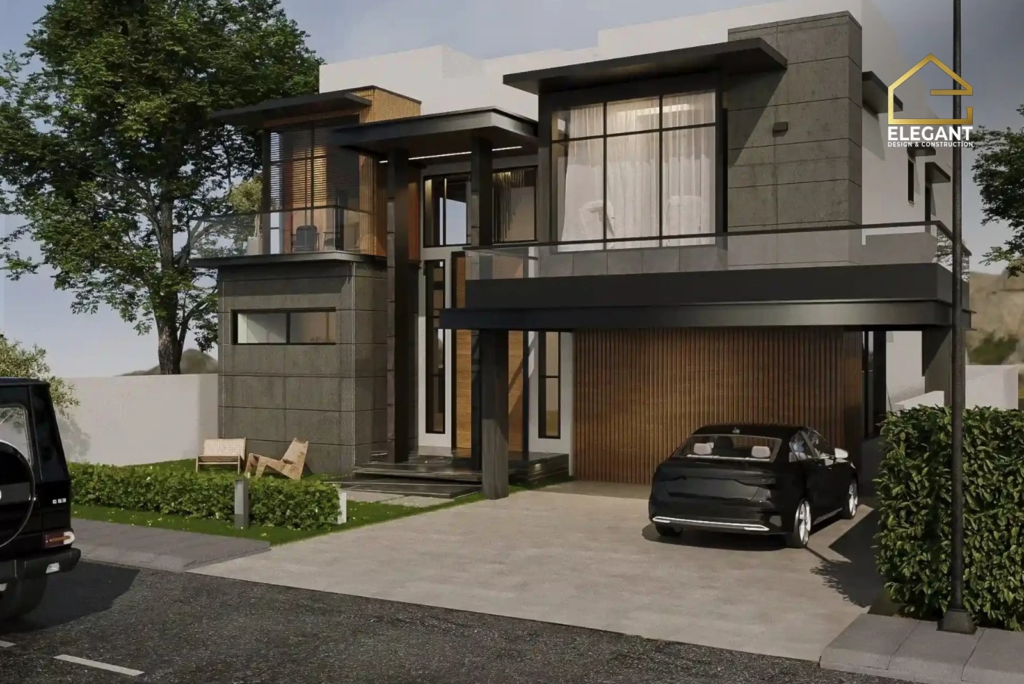

1 Kanal house modern elevation in Bahria Town, Phase 3, Rawalpindi  by Elegant Design & Construction

Elegant Design & Construction has built five types of one kanal front elevation. Each of them would satisfy all the customers’ tastes and society value.

Here are the five dominant front elevation styles in Pakistan of 2026:

Contemporary Minimalist

The contemporary minimalist house design has some features:

• Clean horizontal lines and flat facades
• Windows indented deeply within the façade’s frame, creating deep shadow plays.
• Materials include: cement plaster, glass, steel railings, and timber screens.
• An integral car porch
• Water feature or long planter box at the entrance.
• Best for young, urban-focused design lovers

Mediterranean/Spanish Colonial

Families seeking an old-world feel, as well as buyers residing in exclusive neighborhoods like Bahria Enclave or DHA Phase 6, find this Mediterranean/Spanish colonial house design to be worth it.

• Stucco walls finished in cream, terracotta, or soft ochre hues.
• Arched window and door frames.
• Small balconies with wrought-iron balustrades.
• Terracotta-tiled roofs or flat parapets with coping details.
• A gated courtyard entry with a water feature or plants.

Classic/Traditional Pakistani Haveli-Inspired

Classic haveli-inspired house design in Pakistan is best for joint families, culturally rooted owners, and privacy-seeking individuals.

• A high boundary wall that shields private inner courtyards.
• A central courtyard, typically covered with a portico for cooling in summer.
• Jali work (decorative perforated screens) on windows, protecting from the direct sun.
• Intricate timber elements adorn window frames and fascias.
• Flat roof, which can serve as a seating area in the evenings.
• The multiple courtyards minimize internal circulation and allow for cross-ventilation.

Modern Farmhouse

Modern farmhouses are preferable for couples with young families and buyers with a preference for properties in green, suburban areas like Islamabad and Rawalpindi.

• Pitched roof with a substantial overhang (10-14 feet), useful for storage on smaller lots.
• A combination of stone, wood cladding, and plaster finishes.
• A large covered veranda or patio (400-600 sq.ft), wrapping around two or three sides of the house.
• Large windows that frame landscape views.
• Elements such as metal balustrades with a rustic feel and barn-style doors.

Modernist/Brutalist (Emerging Trend)

In emerging trends of house designing, the brutalist architecture design is now alive around the globe, building inviting, sleek homes.

• Exposed concrete or wood-form top-quality concrete finishing
• Emphasis on solid-void relationships through large openings and narrow slits.
• Pure geometric forms like cubes and cantilevers.
• Little decorative application; beauty lies in the raw material and its shape.
• Steel and glass are used as window and balustrade materials.
• Needs meticulous quality control; finishing can add 15-20% to the budget.

1 Kanal House Design Layout Plan – 2026

The plan for 1 kanal in the year 2026 aims at separating functions within a house:

• The public zone: drawing room, guest room, formal dining room
• The private zone: family lounge and bedrooms
• The service zone: kitchen, laundry room, and servant’s room

Designers implement the separation by using the central staircase as a spine and dividing the ground floor into east and west wings.

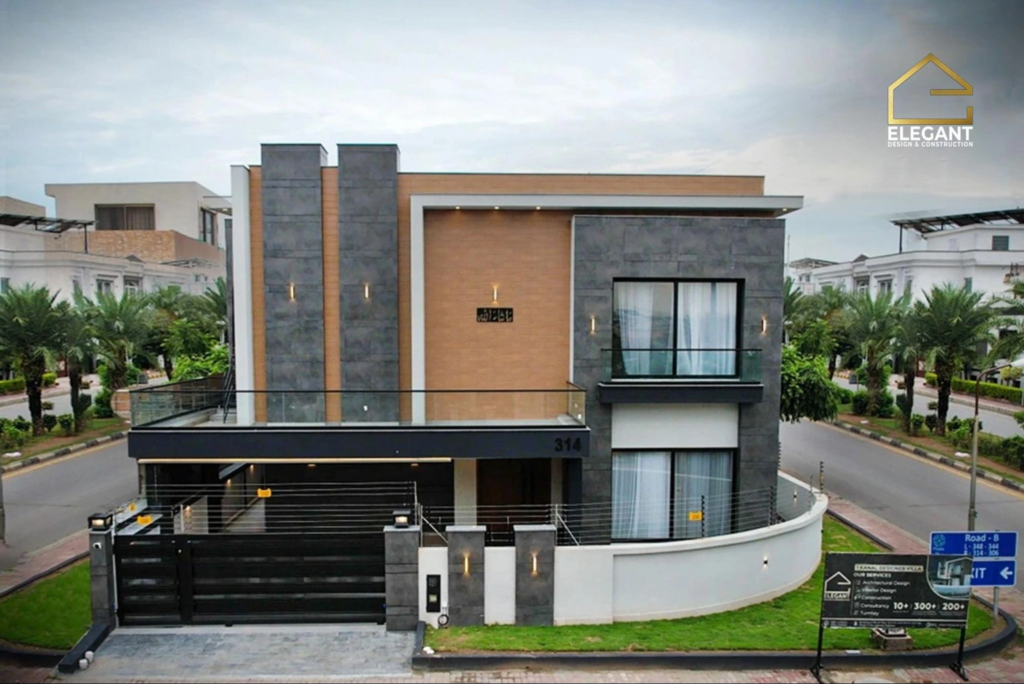

A full 1 Kanal house design in Main Boulevard, Phase-4, Bahria Town, Islamabad, by  Elegant Design & Construction

Complete House Layout

A complete layout of a 1 Kanal House must contain the following spatial program:

• 1 drawing room for formally receiving guests
• 1 family lounge (private living / TV area)
• 1 formal dining room + 1 informal dining room adjacent to the kitchen
• 4 – 6 bedrooms (1-2 on the ground floor and 3-4 on the first floor)
• Attached bathrooms and a walk-in wardrobe
• 1 working kitchen + 1 show kitchen
• 1 powder room adjacent to the drawing room
• 1 study/home office
• Servant’s quarters (1 room, bath, small kitchenette)
• Car porch for 2 cars
• Front lawn, side lawn, and back utility yard
• Mumty and rooftop terrace

Ground Floor Plan

Ground floor covers roughly 2,800-3,000 sq. ft of space, with a rigid hierarchy placed on guests over family. The entrance from the porch flows through the double-height foyer, straight into the drawing and formal dining – avoiding any traversal through family areas.

Suggestions for ground floor zones:

At least one bedroom should be placed on the ground floor for reasons of convenience for elderly parents, relatives, or even to accommodate overnight guests. This is a design priority for 2026.

First Floor Plan Layout

This is usually where the family lives. It ranges between 2600 and 2800 sqft.

A typical first-floor plan would look like this:

• Master suite bedroom with ensuite, walk-in closet, and private terrace
• 2-3 other children’s / guest bedrooms with ensuite baths
• Family lounge / TV room above the ground lounge
• Pantry/tea kitchen to serve the upstairs
• Open terrace above the porch
• Continuation of the staircase to the mumty

Many designers placed the lounge on the first floor directly above the ground floor lounge in order for the plumbing and electrical risers to align one above the other as much as possible. This saves costs on construction and future problems from leaks.

3D Maps & Isometric Views

A 3D map (also an isometric render) turns a 2D floor plan into a 3D model to show a client the heights of ceilings, placement of windows, and how the traffic flows between the rooms before construction is started. We create 3 types of renders on all our 1 kanal projects:

• Aerial cutaway render – this shows two floor levels at the same time
• Walkthrough render – this gives an eye-level perspective of the drawing room, lounge, and master bed.
• Exterior daylight + night render – this helps a client see that materials for the elevations are correct and that the facade lighting can be appropriate.

Client spatial decisions are confirmed during the design stage, which decreases on-site change orders by an estimated 60-70%. Many architects use software like AutoCAD for the plans, SketchUp or Revit for the models, and Lumion or D5 Render for the photorealistic renders.

Lawn Layout

The most integral element of a 1 kanal house in Pakistan is its lawn. In a 1 kanal plot, you can fit a front, side, and back lawn, depending on the plot’s direction.

Three common ways to organize your lawn:

1. Front and Side L-shape lawn – Best for greenery view from your drawing and master bedroom.
2. Front and Rear lawn – Best for a secluded and private space at the back for your family.
3. Central courtyard lawn – Bring natural light into all parts of the house.

Landscapers use grass beds (Lawn 2 or Bermuda), paths, a water feature, lighting along the lawn, and an arrangement of seats on the gazebo. Usually, 400-800 sq ft of a 1 kanal house lawn would contain the green area, making the space manageable and preventing it from feeling overly open.

Basement Layout

A basement in a 1-Kanal plot gains you an extra 1800-2500 sq ft usable space. It is also considered to be the norm in Islamabad, Rawalpindi, and Lahore nowadays. The basement in the house has several benefits, like efficient cooling, separation of leisure areas from rest areas, and added property resale value.

Layout of usable spaces in a 1-Kanal house basement:

• Home theatre (250-350 sq ft) with acoustic panels & tiered seating
• Home gym (250 sq ft) with rubber floor & mirror wall
• Games room or snooker hall (350 sq ft)
• Wet bar/Mocktail counter
• Store room (temperature-controlled)
• Powder room
• Mechanical room/Electrical room (DB, UPS, Water pump)

Two ways to approach ventilation in a basement: A sunken court/light well at the rear and mechanical exhaust at the front to provide cross-ventilation. Waterproofing is a necessity in Islamabad’s monsoons, utilizing SBS membranes with crystalline admixtures in the concrete.

Servant Quarter & Utility Layout

The servant quarter (one bedroom (90-110 sf), one attached bath, and a small kitchenette) is located at the back corner of the plot. A separate entrance is planned from the rear lane or a side pathway, keeping the household servants out of family living areas.

Utility components located next to servant quarters:

• Laundry with a washing machine, dryer, and an ironing counter
• Outdoor drying yard
• Generator and UPS room (soundproofed)
• Water storage (1,500-2,000 gallons underground tank, 1,000 gallons overhead tank)
• Gas meter and electrical DB enclosure
• Garbage collection area

A good utility design minimizes mechanical noise, odors, and mess, often neglected in inferior 1 kanal residences.

1 Kanal House Rooftop Design Ideas

1 Kanal home rooftop, about 2,500+ sq ft space, is not used to its full potential. Modern designs can transform the rooftop into 5th living floor. They include functional zones such as:

Top Rooftop design for 2026:

• Open terrace + BBQ deck
• Rooftop garden
• Solar farm
• Star-gazing lounge
• Yoga/Prayer area

A structural engineer should approve all loads on the rooftop before construction, as a planted rooftop would contribute around 80-120 psf of dead load, and a solar array adds 5-8 psf of dead load plus wind uplift.

Frequent Planning Mistakes in Building 1 Kanal Plots

Even for a relatively large 1 kanal house, a couple of common mistakes led to uncomfortable, undesirable homes that lack resale value.

• A very large drawing room
• An unfavorable plot orientation
• A front kitchen
• No waterproofing of the basement
• An extremely small water tank
• No cross ventilation in any bathrooms
• Clashing style of elevations
• Not enough parking space

Let’s Plan and Construct Your Ideal 1 Kanal House

Elegant Design & Construction has designed and handed over numerous 1 kanal homes throughout Islamabad, Rawalpindi, DHA, and Bahria Town, with the success and portfolio evidence. Site survey, climate studies, and a family interview precede even the first line.

Get in touch with our design team and turn your 1 kanal plot into a home to accommodate your family, your taste, and your investment.

Frequently Asked Questions

1. What is the standard size of a 1 Kanal house in Pakistan?

A standard 1 Kanal plot in Pakistan is approximately 4,500 sq ft (50 x 90 feet). However, dimensions may vary slightly depending on the housing society and city.

2. How many bedrooms can a 1 Kanal house have?

Most 1 Kanal houses feature 5 to 7 bedrooms, along with attached bathrooms, drawing rooms, TV lounges, kitchens, servant quarters, and parking spaces.

3. What is the best layout for a 1 Kanal house?

The best layout depends on family size and lifestyle. Popular designs include double-story houses with separate family and guest areas, spacious lounges, and outdoor spaces such as lawns or terraces.

4. What are the latest 1 Kanal house design trends in Pakistan?

Popular trends in 2026 include modern contemporary facades, open-plan living spaces, large glass windows, smart home features, minimalist interiors, and energy-efficient designs.

5. Which architectural style is most popular for 1 Kanal homes?

Modern contemporary, Spanish, Mediterranean, and minimalist architectural styles are among the most popular choices for 1 Kanal houses in Pakistan.
